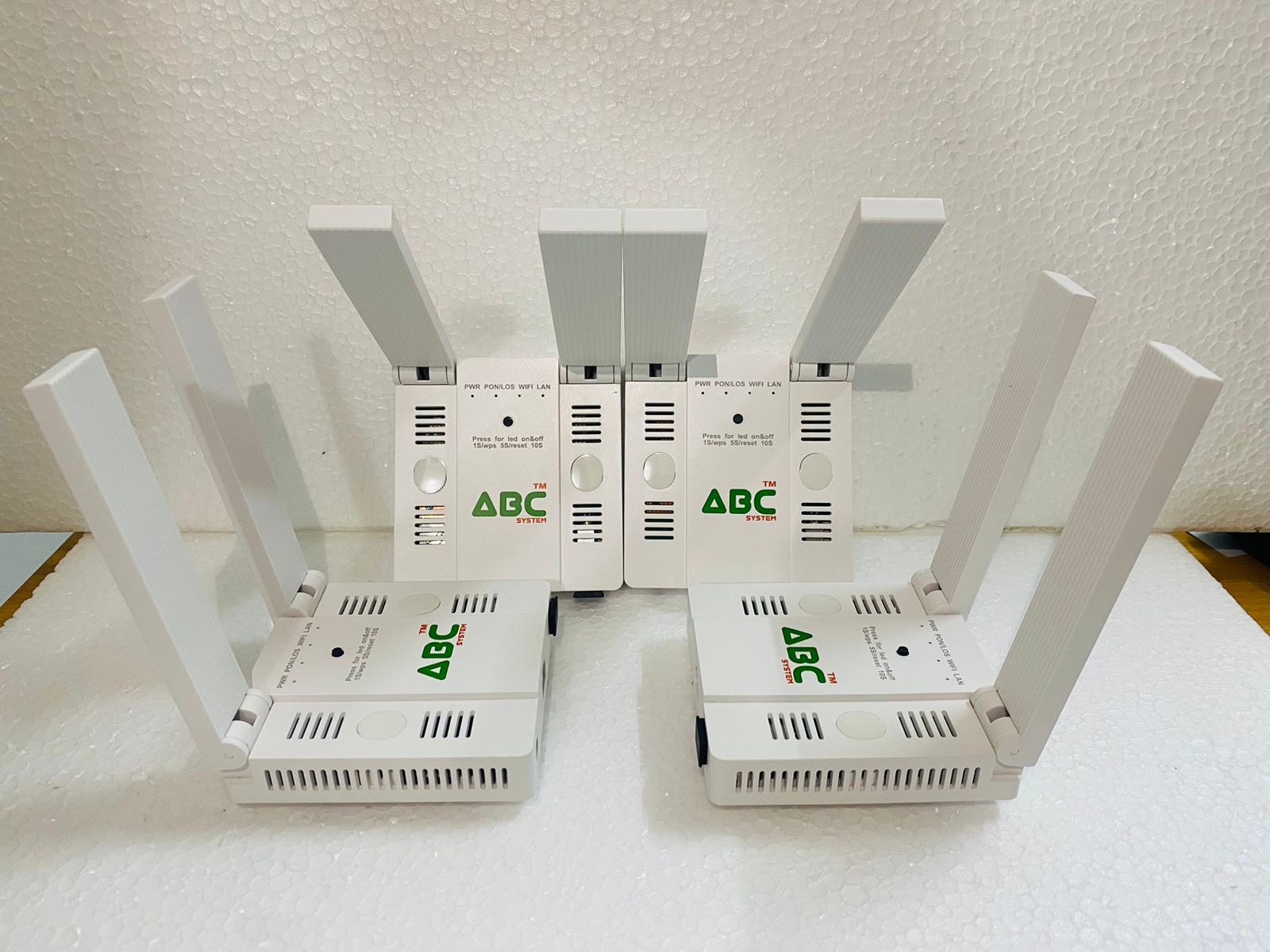

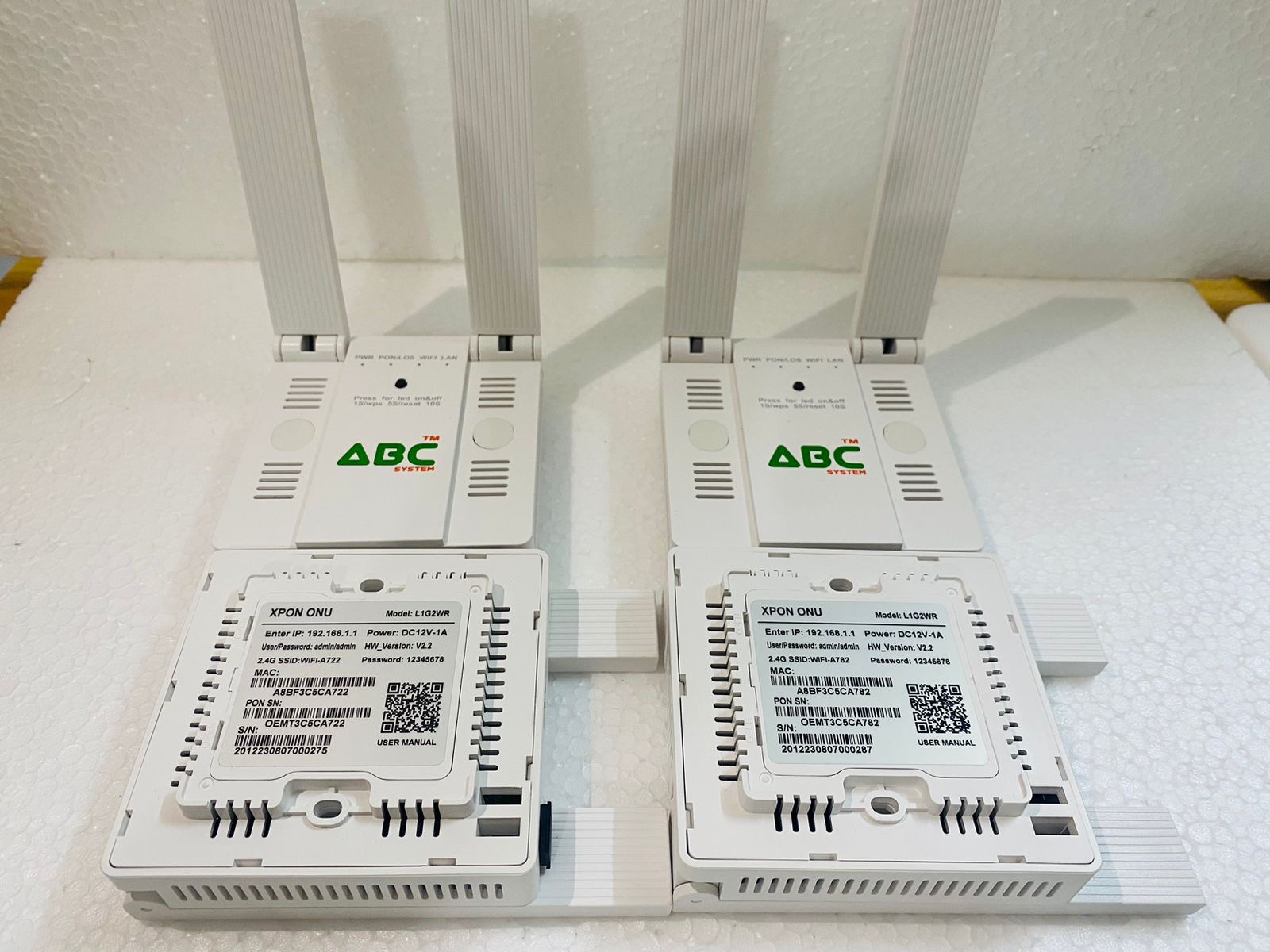

ABC Onu Router 1G

PON Interface

1 GPON BOB (Bosa on Board)

Input optical power:-8 to -27dbm

Output optical power:0~+5dBm

Transmission distance: 20KM

Compliant with IEEE802.11b/g/n,

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps,

2T2R,2 external antenna 5dBi,

Support: Multiple SSID

Channel: Auto

Modulation type: DSSS, CCK and OFDM

Encoding scheme: BPSK, QPSK, 16QAM and 64QAM

TX: 1310nm, RX: 1490nm

SC/UPC Connector

RTL9603C,DDR2 128MB

SPI Nand flash 1Gbit

Wavelength

Optical Interface

Chip Spec

Flash

DC 12V/1A

≤6W

120mm×87mm×32mm(L×W×H)

0.2Kg±0.05Kg

Power Supply

Power Consumption

Dimension

Net Weight

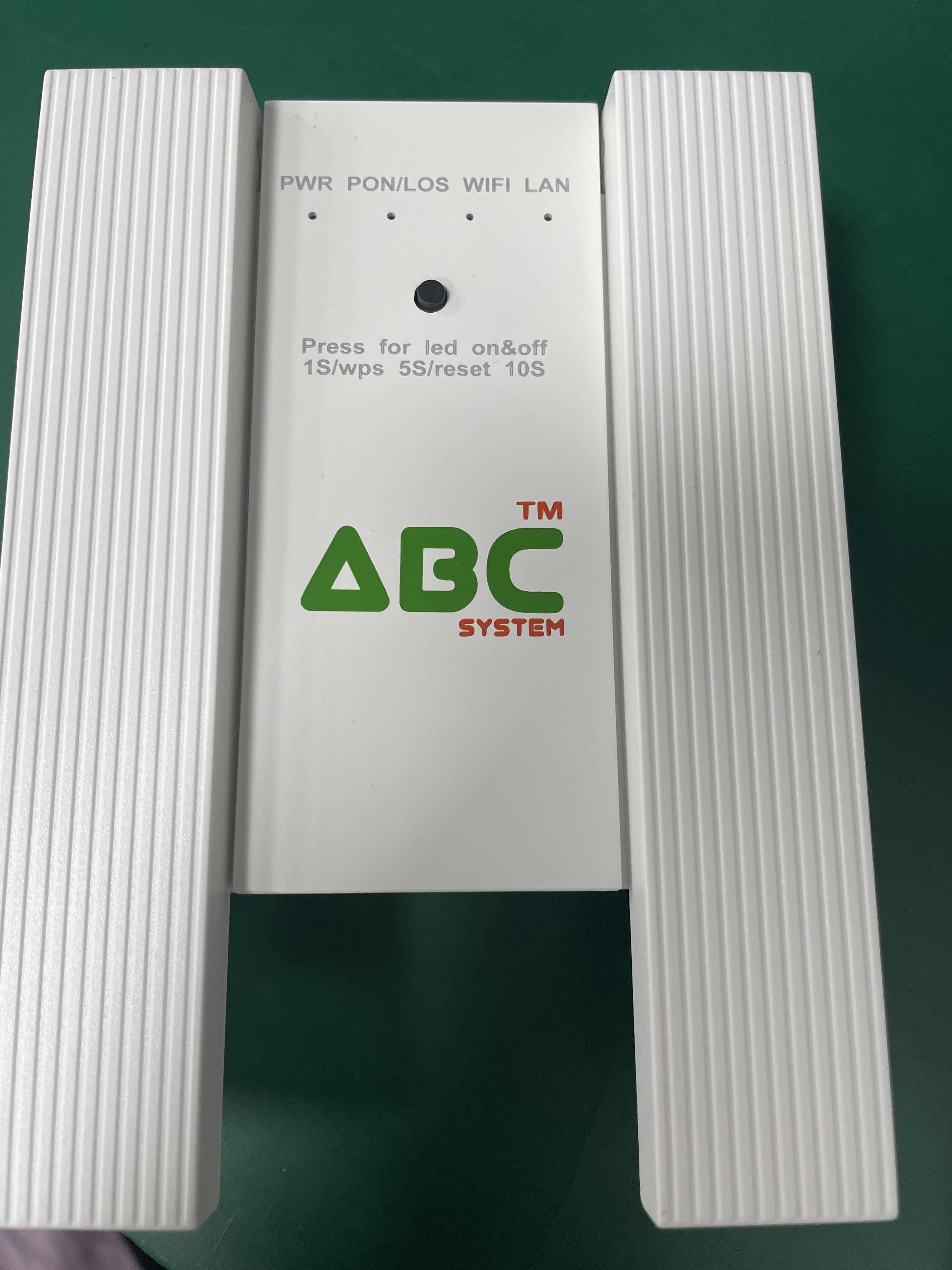

5 LED, For Status of WIFI、PWR、LOS、PON、LAN

1,For Function of Factory Reset, WPS,LED ON/OFF

LED

Push-Button

Parameter

LAN Interface 1 x 10/100/1000Mbps(GE) Ethernet interfaces. Full/Half, RJ45 connector

Wireless
