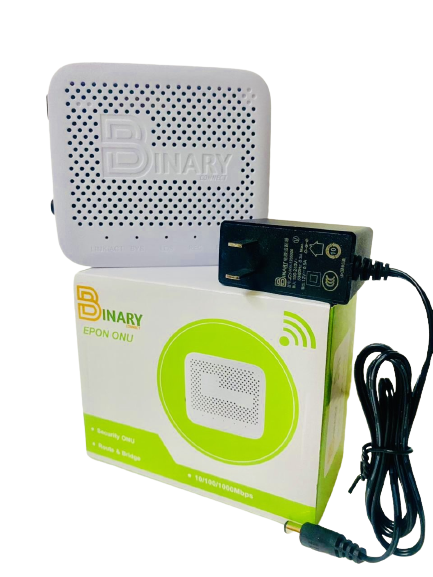

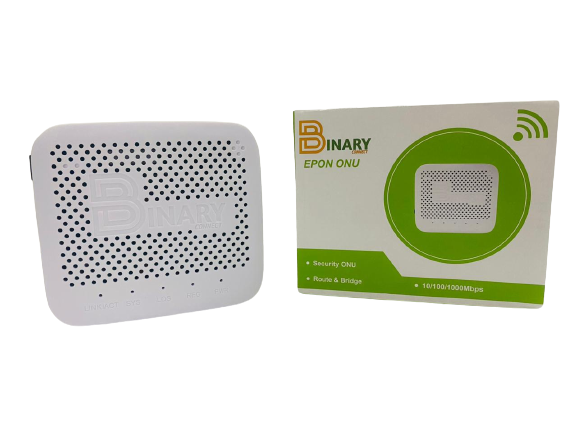

Binary Epon Giga ONU

Item Parameters Specification Interface PON Port 1 EPON optical interface Meet 1000base-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM Ethernet Port(LAN) 1*GE Auto-negotiation RJ45 ports Full Duplex / Half-Duplex RJ45 Auto-MDI/MDI-X Transmission Distance 100 Meter Power Supply Port 12V DC input Management Network Management Support IEEE802.3 QAM ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management Management Function Status monitor Configuration management Alarm management Log management Environmental Specifications Shell Plastic casing Power External 12V 0.5A DC power supply adapter Power consumption: <3W Dimensions 110mm(L) x100mm(W) x23mm (H) 0.3kg Environment Operating Temperature：0～50℃ Storage Temperature：-40～85℃ Operating Humidity：10%～90%(Non-condensing) Storage Humidity：10%～90%(Non-condensing)
