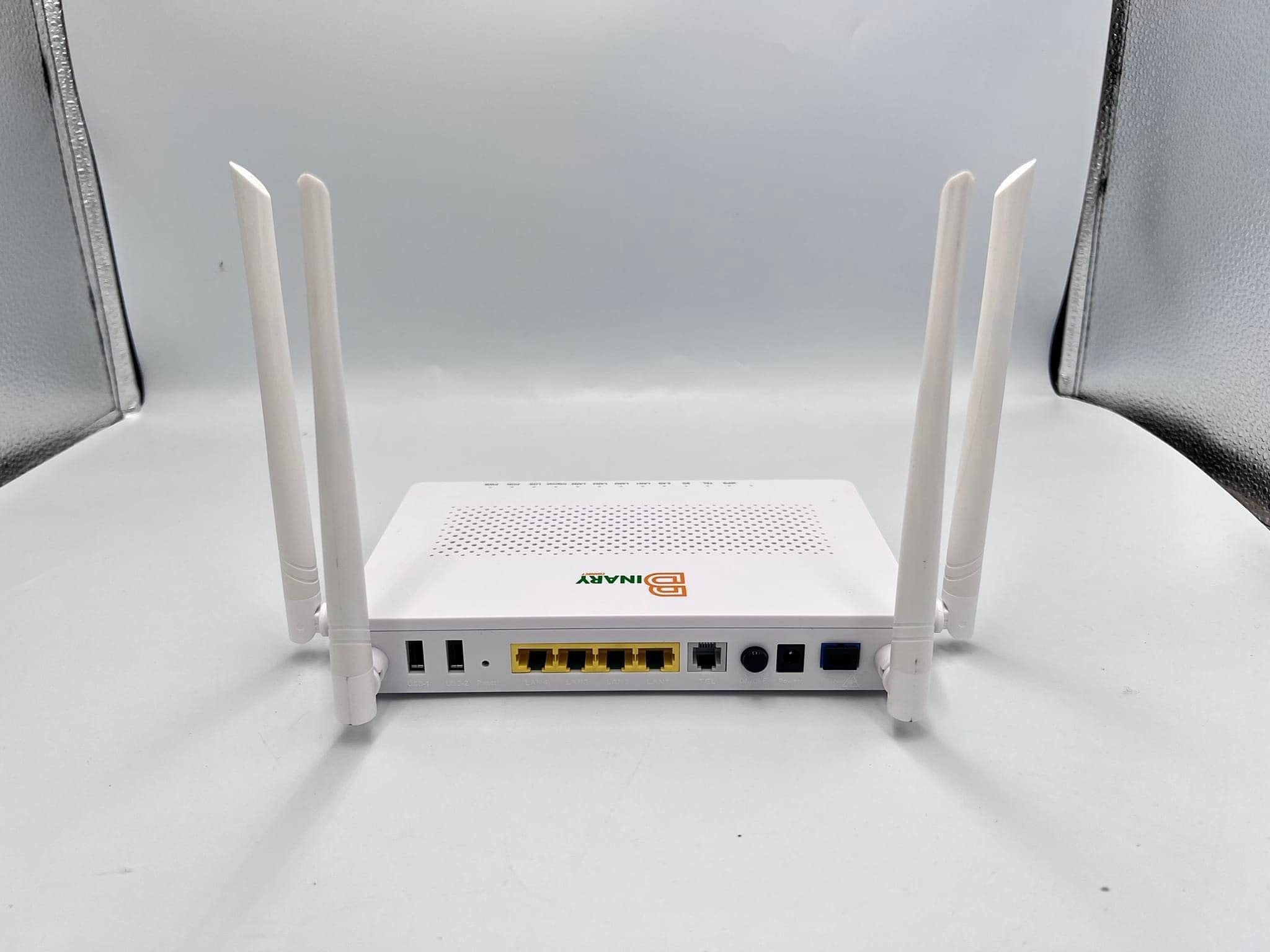

Binary Dual Band ONU+Router

PON Interface 1 GPON BoB（Class B+） Receiving sensitivity:≤-27dBm Transmitting optical power: +0.5~+5dBm Transmission distance: 20KM Wavelength TX: 1310nm, RX: 1490nm Optical Interface SC/UPC Connector Design Scheme ECONET7526 Chip Spec CPU 950MHz,DDR2 256MB Flash SPI NAND Flash 128MB LAN Interface 1 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector Wireless Compliant with IEEE802.11b/g/n,ac 2.4G Operating frequency:2.400-2.4835GHz 5.8G Operating frequency:5.150-5.825GHz 2.4G 2*2 MIMO, rate up to 300Mbps 5.8G 2*2 MIMO ,rate up to 867Mbps 2 external antennas 5dBi Support Multiple SSID POTSinterface 1 FXS, RJ11connector Support: G.711/G.723/G.726/G.729codec Support: T.30/T.38/G.711 Fax mode, DTMFRelay Line testing according toGR-909 LED 12 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G、TEL、wps、internet Push-Button 2 ,For Function of Reset and WPS Operating Condition Temperature: 0℃~+50℃ Humidity: 10%～90%（non-condensing） Storing Condition Temperature: -30℃~+60℃ Humidity: 10%~90%（non-condensing） Power Supply DC 12V/1.5A Power Consumption ≤8W Dimension 208mm×133mm×42mm（L×W×H） Net Weight 0.35Kg Storing Condition Temperature: -30℃~+60℃
